Margin Optimization for Fractionated Breath-hold Radiation Therapy of Small Lung Lesions

W. G. O'Dell², M. C. Schell², P. Okunieff

Department of Radiation Oncology, University of Rochester, 601 Elmwood Avenue, ox 670, Rochester, NY 14642, USA
and ²Department of Biomedical Engineering, University of Rochester

I. Introduction

End-expiration breath holding often enables one to reduce the radiotherapy treatment margin size for lesions <20 mm in diameter such that a lethal dose can be administered to the tumor while keeping the volume of healthy tissue receiving toxic dose within clinically acceptable limits. The primary targeting problem is the variability in target location (TLV) over repeated breath-holds that results in dose field broadening [1]. We seek an optimal treatment margin specification for any given TLV that will result in a tumoricidal dose being delivered to the target while minimizing the volume of surrounding healthy tissue that is likewise ablated. Furthermore, we hypothesize that it is possible to exploit the statistically-random nature of TLV to utilize extremely small, even negative-valued margins.

II. Methods
1. Overview
The effect of TLV on the dose distributions observed by the target and the surrounding tissue was computed using 3D convolution and demonstrated on two test cases: an ideal, computer-generated, spherically symmetric target and dose distribution; and a 2-arc, 10-fraction treatment plan used to treat a representative lung lesion in a human subject.

2. Computer-Generated Target and Dose Model
A 3D, spherically symmetric dose distribution was created to simulate the ideal dose field size for a 12 mm diameter, spherical lesion. The dose field consisted of a uniform dose at the center of the target region that fell off as a function of r3 at the target edge according to the equation: Dmax = peak dose within the target, Rt = target radius, and R90 = radius of the flat central plateau at maximum dose. R90 is defined such that the dose at the target edge becomes 90% in the presence of the r3 falloff. For Dmax = 110% and Rt = 6 mm, R90 becomes 4.4 mm. To simulate the effects of varying the treatment margin size, R90 was increased or decreased, while Dmax and Rt were kept at fixed values.
3. Lung Lesion Treatment Plan
A ~12 mm-diameter tumor was chosen that was located posteriorly-inferiorly in a patient’s left lung. The treatment plan consisted of 6-MV X-rays administered in two 110-degree arcs separated from each other by 20 degrees. Each arc was administered daily at 2.5 Gy/fraction, during independent ~15-second breath-holds, and repeated daily over 10 days of treatment, for a total of 50 Gy.
(the isodose contours at 90, 80, 50, and 30% of maximal dose are shown)

4. Optimization of (Positive) Margins
For the computer-generated dataset, for each margin size and TLV, the resulting tumor DVH and minimal tumor dose were computed. The margin size was adjusted in one-tenth millimeter increments; the optimal margin value was found by iteration that achieved a minimum tumor dose of 90%. For the lung lesion plan, dose distributions were first generated for margins of 2-8 mm, and for the 7x7x10 mm margin-plan used for the actual radiotherapy treatment, and the corresponding optimal TLV values were then determined by iteration.
5. Optimization of Very Small (& Negative) Margins
When using very small margins, dose blurring effect will significantly shift the DVH curve for the target down and to the left, giving unfavorable results. Based upon the dose broadening simulations for each margin, a scaling factor can be computed and applied to the dose distribution such that the minimum tumor dose will be identical to the desired therapeutic minimum dose. The criterion used for comparing several different margin sizes after scaling was the minimization of lung volume receiving 80% of the maximum dose.

III. Results

Optimizing Positive Margins

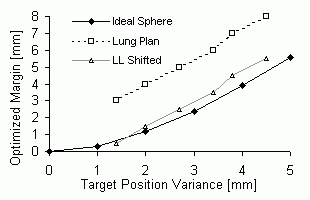

Computer-generated dataset: The optimal (positive) margin was always smaller than the corresponding TLV for TLV < 4 mm. The slope of the optimal-margin versus location-variability relationship for TLV values greater than or equal to 2 mm was 1.47, with intercept –1.87 mm.
Lung Lesion dataset: The optimal margin size was always greater than the corresponding TLV, with a slope of 1.6 and intercept of 0.713. Optimal variability values could not be determined for margins <2.5 mm because the minimum tumor dose was already less than the desired minimum 90% dose level. Shifting the lung lesion curve accordingly (downward 2.5mm) gives a similar result to the simulated results.

Optimizing for Very Small (& Negative) Margins: Lung Lesion Plan, TLV of 4mm
BEFORE SCALING AFTER DOSE AMPLIFICATION

dose profiles and DVHs dose profiles and DVHs surrounding lung DVH (top)
volume seeing >= 80% dose(bot)

IV. Conclusions
For a given target location variability (TLV) in the range of 1-4 mm (encompassing the expected physiologic range when using repeated end-expiration breath holding [2]), the optimal margin size was found to be approximately equal to the standard deviation in the target position. Since the planning treatment margin has traditionally been defined to match the target range, our results suggest that the volume of irradiated tissue can be reduced substantially. For an ideal, 12 mm-diameter spherically symmetric target and dose distribution and a TLV of 4 mm, the optimal treatment margin is 3.9 mm, resulting in 1.06 cm3 of surrounding, healthy tissue receiving >80% maximal dose – a drop of 85% compared with conventional margins. The technique has been extended successfully to include the use of very small and even negative-valued margins, when the proper dose amplification is applied. The use of negative margins can give another 50% or greater decrease.

O'Dell W.G., Reynolds D., Schell M.C., and Okunieff P.
Dose Broadening Due to Target Position Variability during Fractionated Breath-held Radiation Therapy
44th Annual AAPM Meeting (SU-DD-EXH-22), Montreal Quebec, July 2002
O'Dell W.G., Maurer C.R. Jr., Schell M.C., Sandhu A.S., Okunieff, P.
Reproducibility of Internal Target Positions for Breath-held Conformal External-beam Radiotherapy.
43rd Annual AAPM Meeting, Salt Lake City UT, July 2001.

Acknowledgments
The Authors wish to acknowledge the support of BrainLAB GmbH, and
the American Cancer Society (RSG-02-155-01-CCE)
